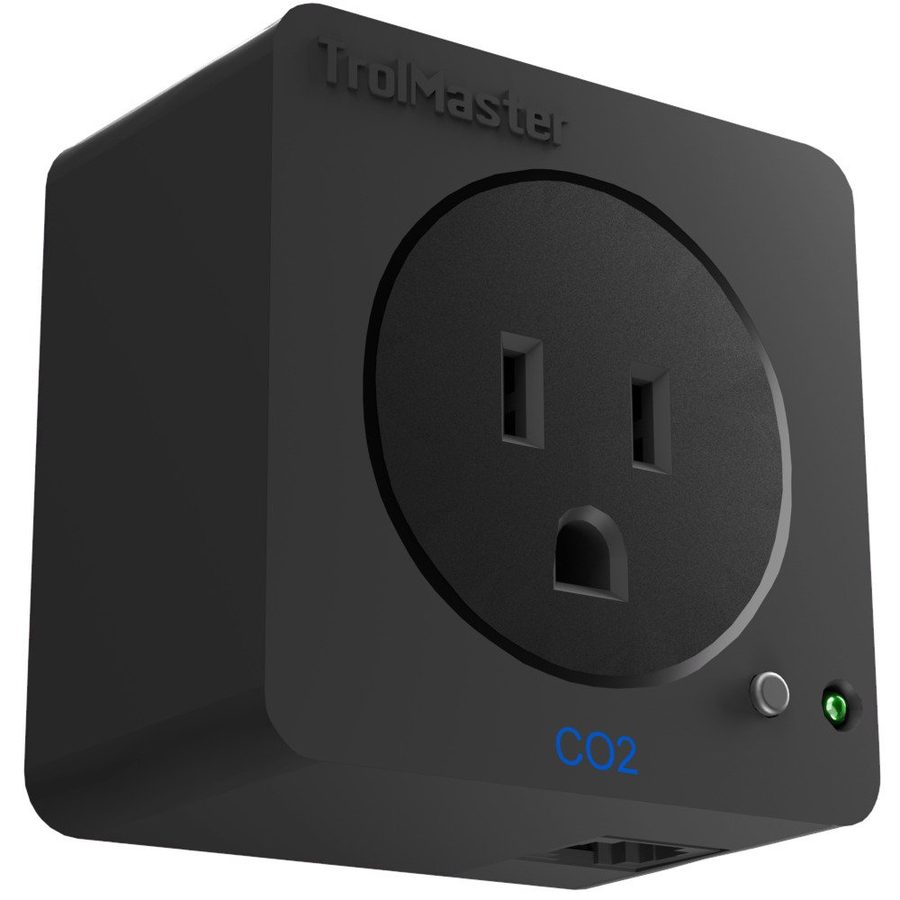

Trolmaster Hydro-X CO2 Device Station DSC-2A

The TrolMaster DSC-2A CO2 control/device module enables users to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls with the Hydro-X system. It is compatible with any CO2 device that draws 10 amps or less at 240 volts.

LED Status Indicators:

Blinking Green (Fast): Module not addressed or has a poor connection to the controller. Press the small button on the module to link it.

Blinking Green (Slow): Module is addressed and connected to the controller but is currently OFF.

Solid Green: Module is addressed, connected, and currently ON.

Blinking Red: Module is overloaded. To reset, unplug the module from the power source.

Package Content:
1 x Device Station DSC-2A
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
